德國HYDRO-BIOS公司——Slimline多通道水樣采集器
Multi Water Sampler Slimline
多通道水樣采集器Slimline是一款對HYDRO-BIOS MWS 6的改進的輕便型多通道水樣采集器，6個采樣筒容量為1L、3.5L或5L，具有直徑小，質量輕的特點，甚至在小船上也可以很容易地操作。Slimline裝有一個馬達驅動的自動釋放裝置，上面集成一個壓力傳感器，用來測量用戶預設的深度。傳感器的測量范圍可根據用戶的工作要求進行選擇。Slimline最大工作深度6000米，標準配置3000米。Slimline在工作時電量消耗極少，并且可以在溫度為-40℃~+85℃的環境中正常工作。整套系統可以由甲板控制單元上的控制按鈕控制，進行在線實時采樣；也可按照預先設定的采樣深度間隔進行離線自容式采樣。
|
|
|

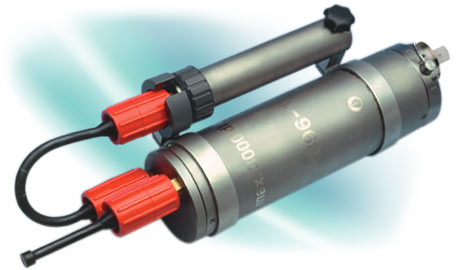

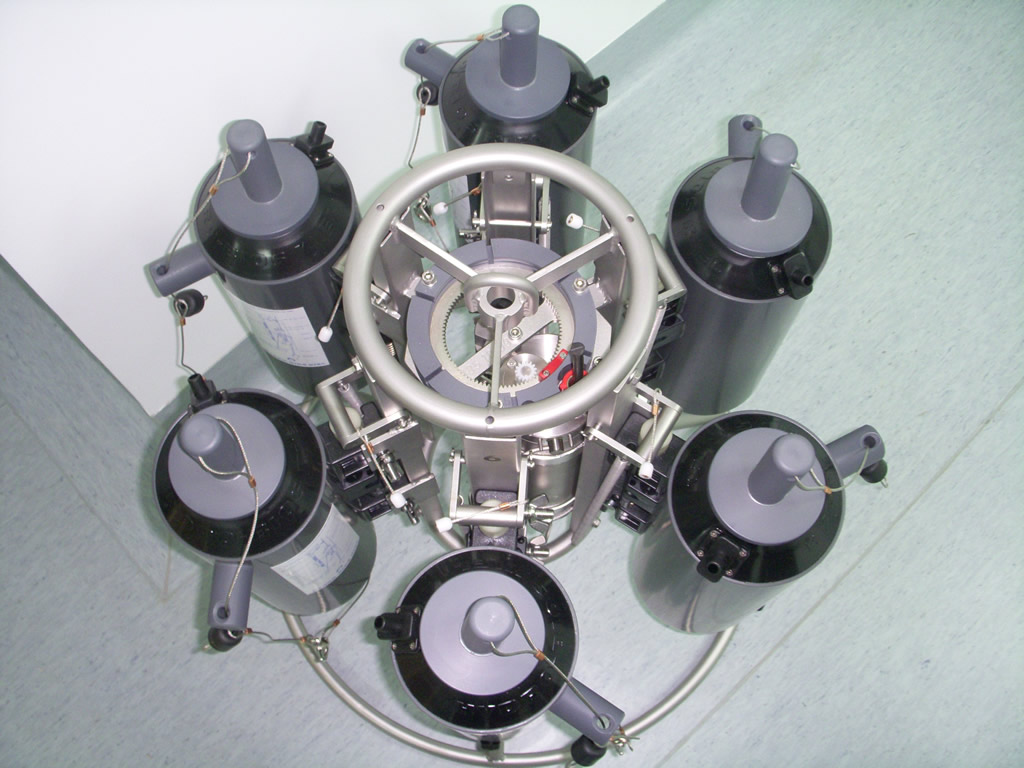

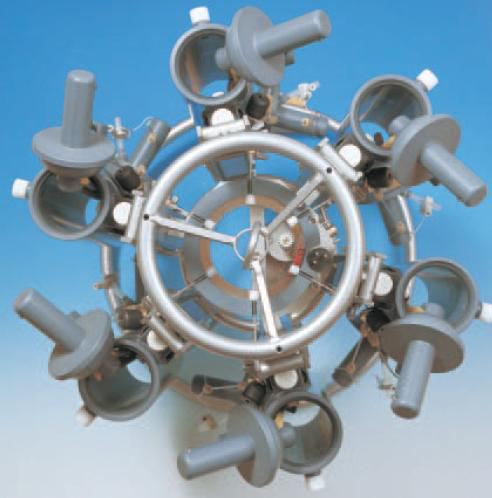

馬達單元 | Slimline多通道采水器俯視結構圖 | Slimline多通道采水器細節圖 |
選配件：
- CT-組件：完全整合在多通道水樣采集器的驅動單元上，由一個電導率傳感器和一個溫度傳感器組成。
- 各種參數的傳感器，如溫度、鹽度、濁度、葉綠素等
技術參數：
尺寸 | 直徑55cm，高度83cm，1L型號 直徑66cm，高度98cm，5L型號 |
空重 | 約40kg，帶6個1L采樣器 約55kg，帶6個5L采樣器 |
最大操作水深 | 標準配置：3000米；可選配置：6000米 |
陣列 | 不銹鋼材質 |
馬達單元 | 由鈦制成，電池供電（3×DL123A/3V） |
甲板控制單元 | 金屬艙室；帶一個控制采樣器開關的按鈕； 顯示采樣筒序號、壓力和電池狀態帶發光二極管背景燈的液晶顯示屏； 與電腦的接口為RS232；由85-260V交流電或電池供電 |
壓力傳感器 | 0.0-3000dbar±0.1%f.s.（標準） |
Slimline多通道水樣采集器訂購信息：
436 975 多通道水樣采集器Slimline
帶微處理器和外置電池組的馬達驅動單元；
集成壓力傳感器；16M數據存儲器；
通過電腦控制的可編程式深度依賴性采樣間隔；
帶甲板控制單元；
配備6個容積為1L的通暢流水樣采集器；
436 976 多通道水樣采集器Slimline
帶微處理器和外置電池組的馬達驅動單元；
集成壓力傳感器；16M數據存儲器；
通過電腦控制的可編程式深度依賴性采樣間隔；
帶甲板控制單元；
配備6個容積為3.5L的塑料水樣采集器；
436 977 多通道水樣采集器Slimline
帶微處理器和外置電池組的馬達驅動單元；
集成壓力傳感器；16M數據存儲器；
通過電腦控制的可編程式深度依賴性采樣間隔；
帶甲板控制單元；
配備6個容積為5L的塑料水樣采集器；
450 500 CT組件
電導傳感器：0～65mS/cm±0.01mS/cm
溫度傳感器：-2 ～32℃±0.005℃
監測頻率：1Hz
Slimline多通道水樣采集器照片集：
|
|

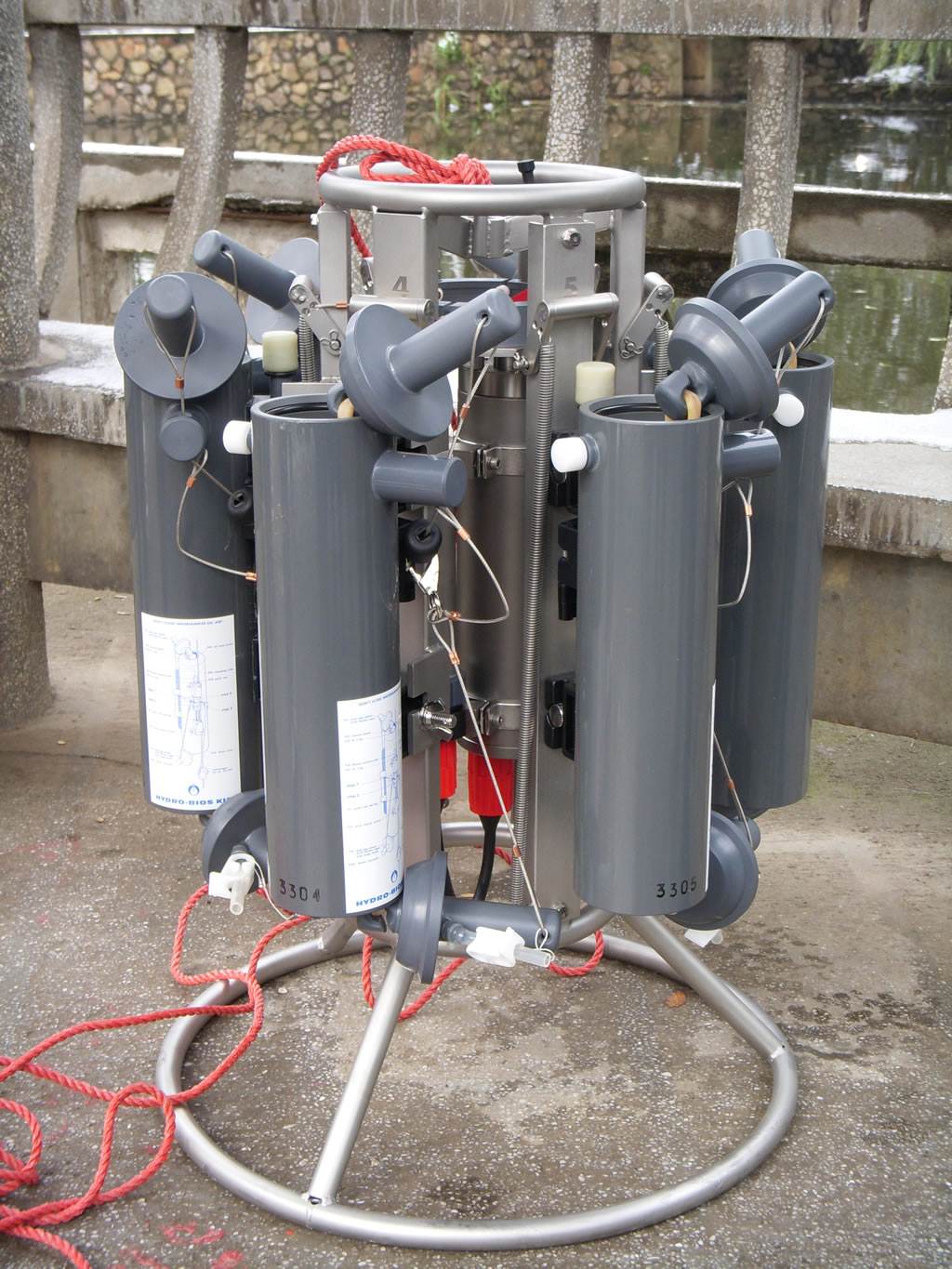

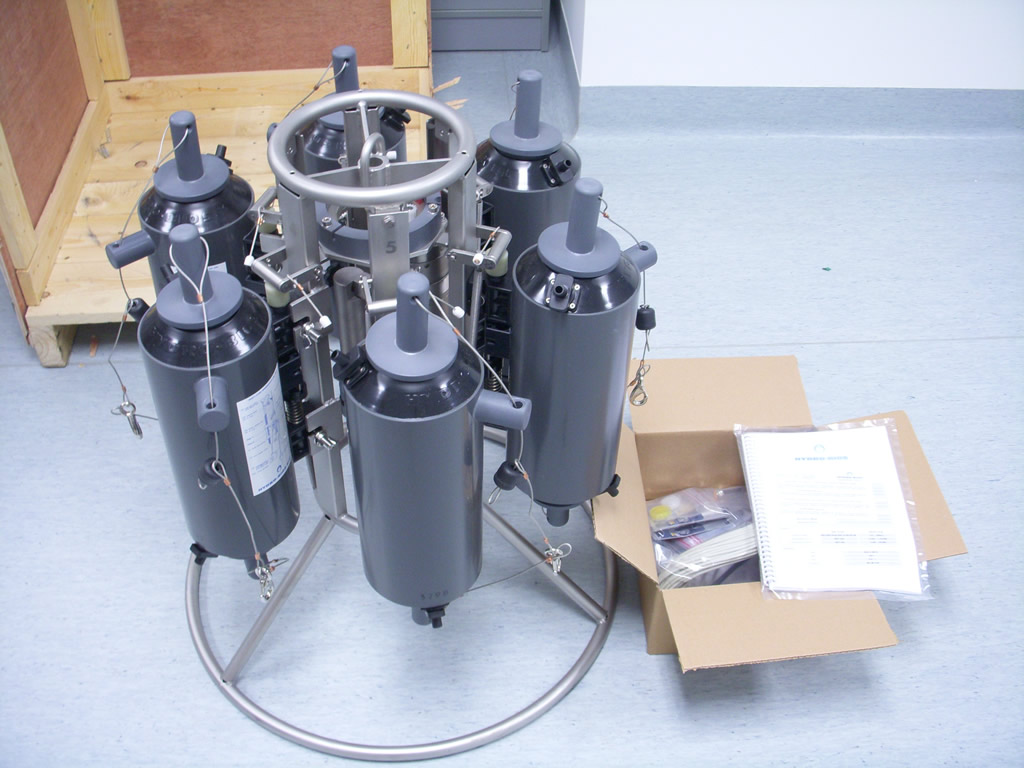

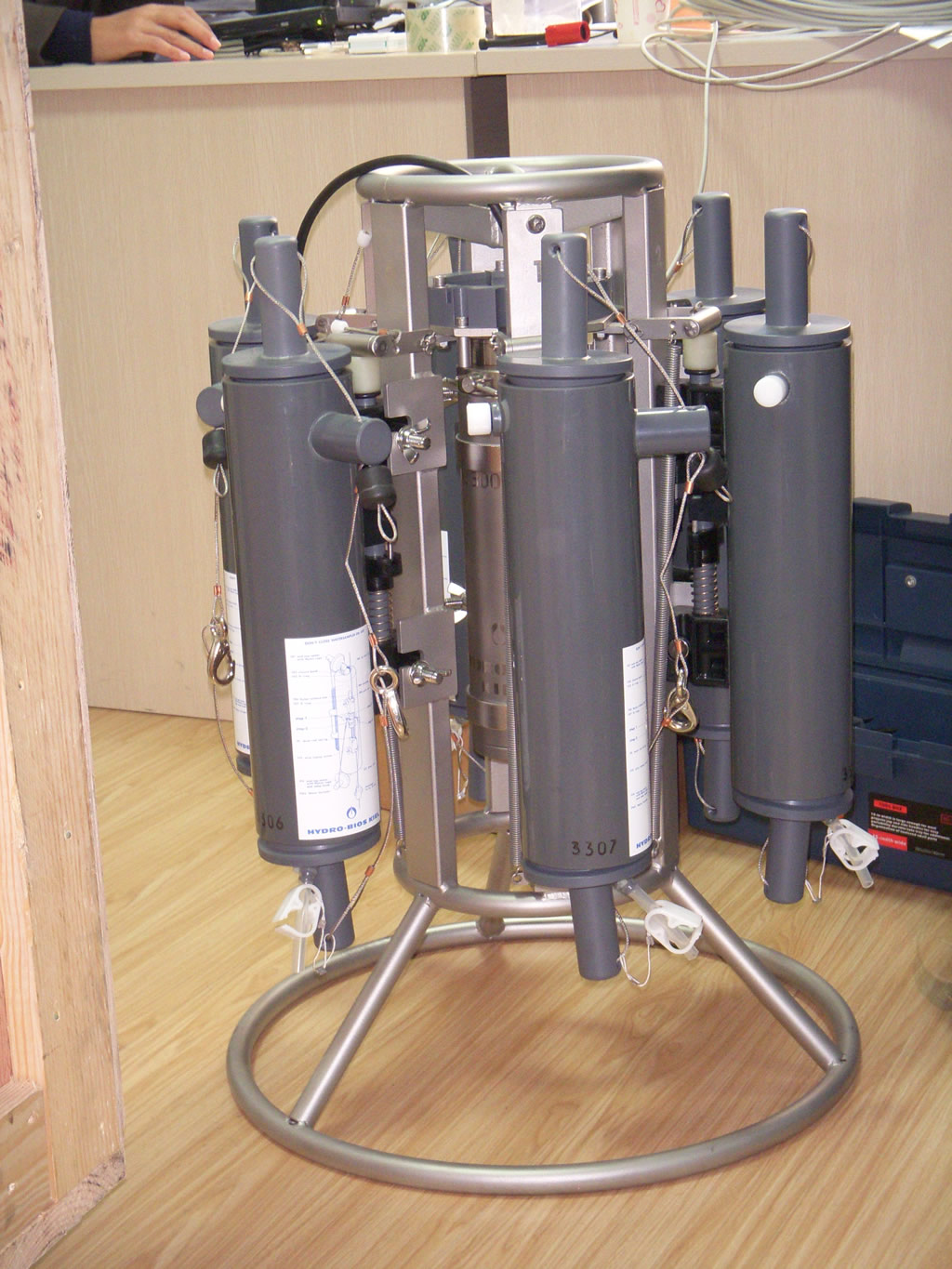

Slimline多通道水樣采集器，6X3.5L | Slimline多通道水樣采集器，6X3.5L |
|
|

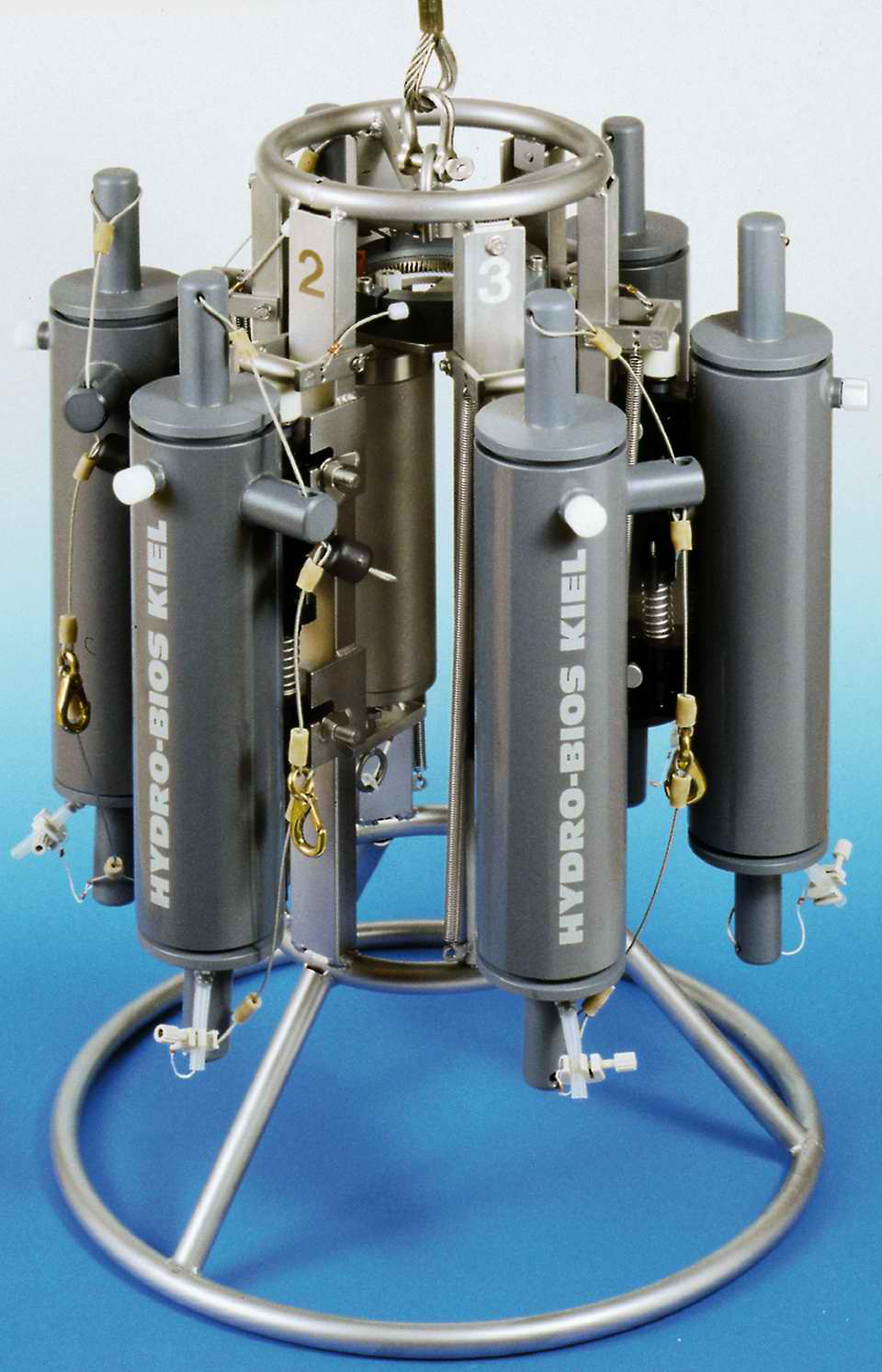

用于Slimline多通道水樣采集器，6X1L | Slimline多通道水樣采集器，6X1L |
|
|

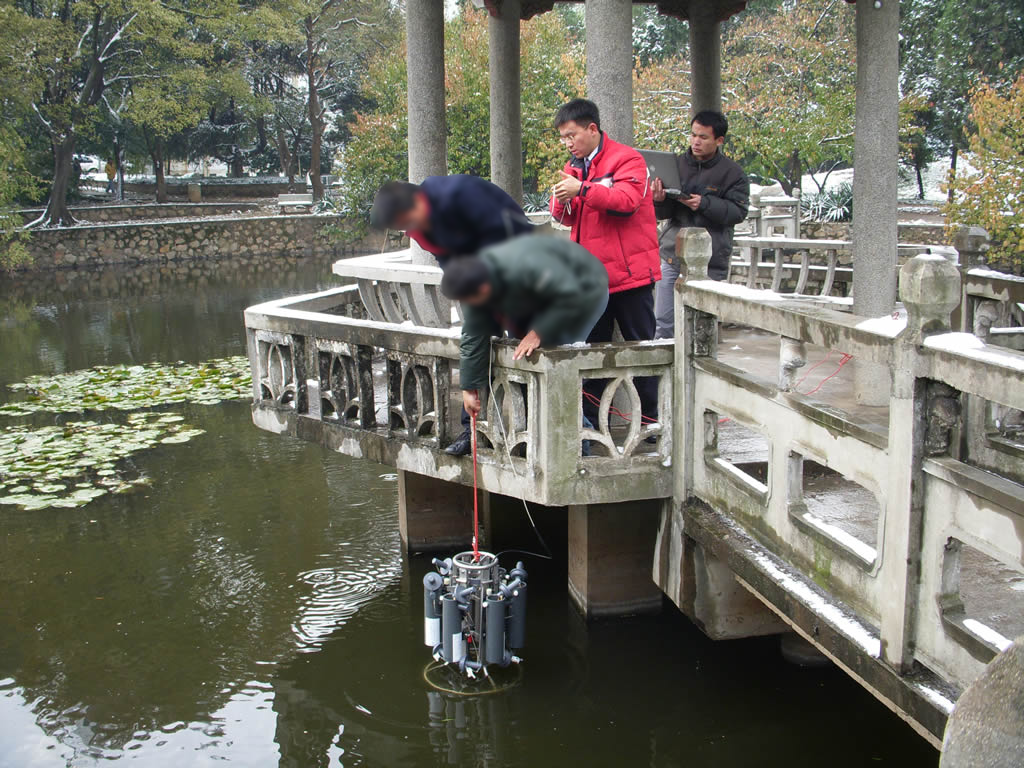

正在采水狀態的Slimline多通道水樣采集器 | 采水前的Slimline多通道水樣采集器 |
資料下載：
代表文獻：
1.Gradinger, Jiirgen Lenz,1989.Picocyanobacteria in the high Arctic.Marine Ecology. Progress series.52:99-101.
2.R. R. Gradinger, M. E. M. Baumann,1991.Distribution of phytoplankton communities in relation to the large-scale hydrographical regime in the Fram Strait.Marine Biology.111(2),311-321.
3.R. J. Gowen, B.M. Stewart, D.K. Mills and P. Elliott,1994.Regional differences in stratification and its effect on phytoplankton production and biomass in the northwestern Irish Sea.Journal of Plankton Research.17(4):753-769.
4.R.J. Gowen, G. McCullough, M. Dickey-Collas and G.S. Kleppel,1997.Copepod abundance in the western Irish Sea: relationship to physical regime, phytoplankton production and standing stock.Journal of Plankton Research.20(2):315-330.
5.K. Richardson, S.H. Jónasdóttir, S.J. Hay, A. Christoffersen,1999.Calanus finmarchicus egg production and food availability in the Faroe–Shetland Channel and northern North Sea: October–March.Fisheries Oceanography.8(1):153–162.
6.M. Trimmer, R. J. Gowen, B. M. Stewart, D. B. Nedwell,1999.The spring bloom and its impact on benthic mineralisation rates in western Irish Sea sediments.Marine Ecology Progress series.185:37-46.
7.Harri T. Kankaanp??, Vesa O. Sipi?, Jorma S. Kuparinen, Jennifer L. Ott, and Wayne W. Carmichael ,1999.Nodularin analyses and toxicity of a Nodularia spumigena (Nostocales, Cyanobacteria) water-bloom in the western Gulf of Finland, Baltic Sea, in August 1999.Phycologia.40(3):268-274.
8.Andrea M. Sass, Henrik Sass, Marco J. L. Coolen, Heribert Cypionka, and J?rg Overmann,2001.Microbial Communities in the Chemocline of a Hypersaline Deep-Sea Basin (Urania Basin, Mediterranean Sea).Applied and Envioronmental Mcrobiology.67(12):5392-5402.9.Victor W Truesdale, Günther Nausch, Alex Baker,2001.The distribution of iodine in the Baltic Sea during summer.Marine Chemistry.74(2–3):87–98.
10.Ann K. Manske, Jens Glaeser, Marcel M. M. Kuypers and J?rg Overmann,2005.Physiology and Phylogeny of Green Sulfur Bacteria Forming a Monospecific Phototrophic Assemblage at a Depth of 100 Meters in the Black Sea.Applied and Envioronmental Mcrobiology.71(12):8049-8060.
11.Maik Inthorn, Michiel Rutgers van der Loeff, Matthias Zabel,2006.A study of particle exchange at the sediment–water interface in the Benguela upwelling area based on 234Th/238U disequilibrium.Deep Sea Research Part I: Oceanographic Research Papers.53(11):1742–1761.
12.Tim J. Waite, Victor W. Truesdale, Jon Olafsson,2006.The distribution of dissolved inorganic iodine in the seas around Iceland.Marine Chemistry.101(1–2):54–67.
13.MAJANEVA Markus, AUTIO Riitta, HUTTUNEN Maija, KUOSA Harri, KUPARINEN Jorma,2009.Phytoplankton monitoring: the effect of sampling methods used during different stratification and bloom conditions in the Baltic Sea.Boreal environment research.14(2):313-322.
14.Bertics, Victoria J., L?scher, C. R., Salonen, I., Dale, Andy W., Gier, Jessica, Schmitz, R.A. and Treude, Tina,2013.Occurrence of benthic microbial nitrogen fixation coupled to sulfate reduction in the seasonally hypoxic Eckernf?rde Bay, Baltic Sea.Biogeosciences(BG).10(3):1243-1258.
15.W. DAVISON,1977.Sampling and handling procedures for the polarographic measurement of oxygen in hypolimnetic waters.Freshwater Biology.7(4):393–401.
16.Austin B. M. Egbore,1978.Seasonal variations in the density of a small West African lake.Hydrobiologia.61(3):195-203.
17.Dr. U. Zaiss, P. Winter, H. Kaltwasser,1982.Microbial methane oxidation in the River Saar.Journal of Basic Microbiology.22(2):139–148.
18.V.F. Samanidou & I.N. Papadoyannis,1992.Study of heavy metal pollution in the waters of Axios and Aliakmon rivers in northern Greece.Journal of Environmental Science and Health . Part A: Environmental Science and Engineering and Toxicology.27(3):587-601.
19.Nilgün Kazanci, Reiner-Hartmut Plasa, Eike Neubert & Afife ?zbirak,1992.On the limnology of Lake K?ycegiz (SW Anatolia).Zoology in the Middle East.6(1):109-126.
20.Eduardo González-Mazo, Jesus María Forja, Abelardo Gómez-Parra ,1998.Fate and Distribution of Linear Alkylbenzene Sulfonates in the Littoral Environment.Environ. Sci. Technol..32(11):1636–1641.
21.V.M León, E González-Mazo, A Gómez-Parra,2000.Handling of marine and estuarine samples for the determination of linear alkylbenzene sulfonates and sulfophenylcarboxylic acids.Journal of Chromatography A.889(1-2):211–219.
22.Claus-Peter Stelzer,2001.RESOURCE LIMITATION AND REPRODUCTIVE EFFORT IN A PLANKTONIC ROTIFER.Ecology.82(9):2521–2533.
23.Udo Noack, Thomas Geffke, Ramani Balasubramanian, Jutta Papenbrock, Mike Braune, Dirk Scheerbaum,2004.Effects of the Herbicide Metazachlor on Phytoplankton and Periphyton Communities in Outdoor Mesocosms.Acta hydrochimica et hydrobiologica.31(6):482–490.
24.L. R. Rodríguez-Gallego, N. Mazzeo, J. Gorga, M. Meerhoff, J. Clemente, C. Kruk, F. Scasso, G. Lacerot, J. García, F. Quintans,2004.The effects of an artificial wetland dominated by free-floating plants on the restoration of a subtropical, hypertrophic lake.Lakes & Reservoirs: Research & Management.9(3-4):203–215.
25.Kristina Samuelsson, Johnny Berglund, and Agneta Andersson,2006.Factors structuring the heterotrophic flagellate and ciliate community along a brackish water primary production gradient.Journal of Plankton Research.28(4):345-359.
26.George Kehayias, Ekaterini Chalkia, Stavroula Chalkia, George Nistikakis, Ierotheos Zacharias, Anastasios Zotos,2008.Zooplankton dynamics in the upstream part of Stratos reservoir (Greece).Biologia.63(5):699-710.
27.MAJANEVA Markus, AUTIO Riitta, HUTTUNEN Maija, KUOSA Harri, KUPARINEN Jorma,2009.Phytoplankton monitoring: the effect of sampling methods used during different stratification and bloom conditions in the Baltic Sea.Boreal environment research.14(2):313-322.
